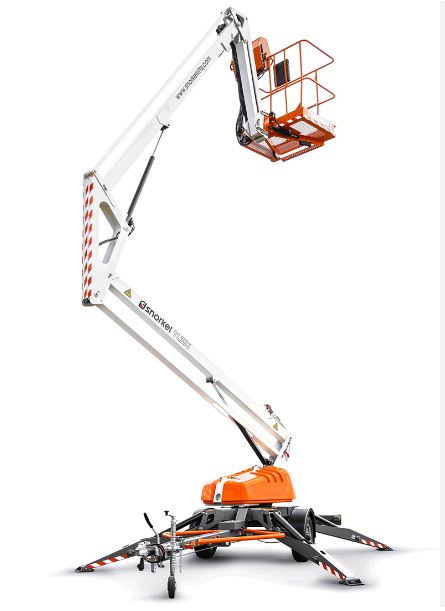

Description

Working Height Up to 41′

Specifications
Max. working height 41 ft 9 in
Max. platform height 35 ft 9 in
Max. horizontal reach 18 ft 5 in
Platform width 3 ft 9 in
Platform depth 2 ft 4 in
Stabilizer footprint 12 ft 9 in x 10 ft 10 in
Towing length 20 ft 11 in
Towing width 5 ft 3 in
Stowed height 6 ft 11 in
Platform capacity (SWL) 475 lbs
Max. wind speed 28 mph
Jib length 4 ft 3 in
Jib arc 130°
Platform rotation 160°
Superstructure rotation (non-continuous) 700°
Wheels 185R14C
Controls Hydraulic proportional
Power source 24V DC battery
Power options Gasoline; bi-energy (combustion & battery); AC electric
Battery 4 x 6V 225Ah
Weight 3,498 lbs
